36" Base Console, Left Front/Right Side Drawer Banks

(All cabinets shown in Skyline Walnut. Click on photo to enlarge.)

Front View

Side View

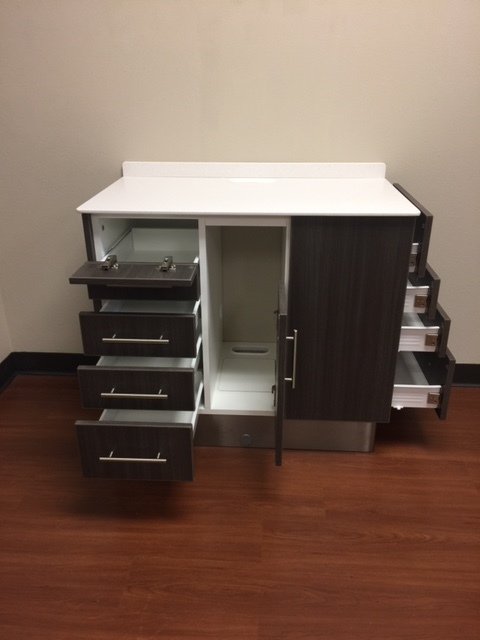

Open View

(3 options available at base unit)
see…Drawer/Door Configurations

Dental cabinets are available in a variety of Laminate Finishes and Countertop Colors.
Custom Colors are available through direct quote.

BASE CONSOLE FEATURES:

Base Utility Cabinet

Center Equipment Bay includes predrilled bolt patterns for easily mounting major brands of dental arms, or drill independently on base plate according to any dental arm specifications
Center Bi-fold Door allows open door access to equipment, or closed door access with 6" opening remaining for dental arm extension
Soft Close Drawers at Left Front (4), Right Side (4), with white metal slides and drawer boxes
Fold Down Drawer Panel (top left) allows hose extension if equipment housed in top drawer
Removable Bottom Panels at cabinet base interior allows access to electrical/hose lines
Multiple Grommet Holes to run electrical or hose lines throughout rear of cabinet
Matte Nickel, Door and Drawer Pulls
Adjustable European Hinges

Solid Surface Countertop

Hygienic, Non-Porous, 100% Acrylic Solid Surface Countertop (1/2") with Backsplash (2")
Coordinated Grommet centered at rear of countertop

Decorative Toe Kick

Decorative Metal Laminated Plywood Toe Kick in Satin Brushed Nickel
Taller Toe Kick Height (6") allows maneuverability of dental stool wheels around cabinet base
Ergonomic Set Back (3") allows comfortable standing position at front of cabinet
Foot Control Grommet at front center of toe kick to run electrical/hose lines
Concealed, Adjustable Foot Levelers

DIMENSIONS: 37.25"w x 21"d x 33"h

INSTALLATION: Anchors to Wall Studs

PRODUCTION SCHEDULING: Please allow minimum 6 weeks lead time. Call for current schedule.

* Delivery & Installation Not Included. Applicable Sales Tax Not Included.
